Description

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before sending them to the tweeters using the audio signal circuits.

Diagnosis Procedure

1.CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

  • Proper connection
  • Damage
  • Disconnected or loose terminals

2.HARNESS CHECK

Nissan Maxima. HARNESS CHECK

  1. Disconnect BOSE speaker amp. connector B110 and suspect tweeter connector.

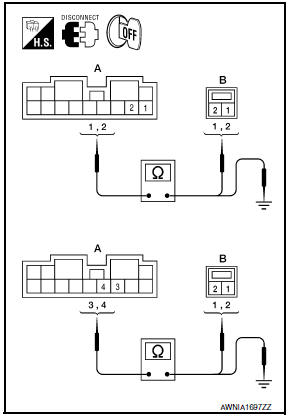

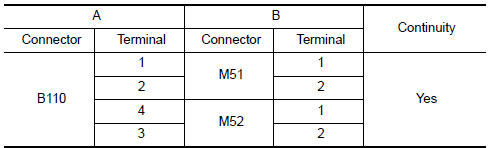

  2. Check continuity between BOSE speaker amp. harness connector B110 (A) and suspect tweeter harness connector (B).

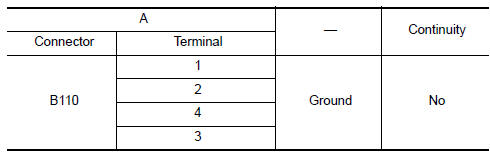

  3. Check continuity between BOSE speaker amp. harness connector B110 (A) and ground.

Nissan Maxima. HARNESS CHECK

Nissan Maxima. HARNESS CHECK

3.TWEETER SIGNAL CHECK

Nissan Maxima. TWEETER SIGNAL CHECK

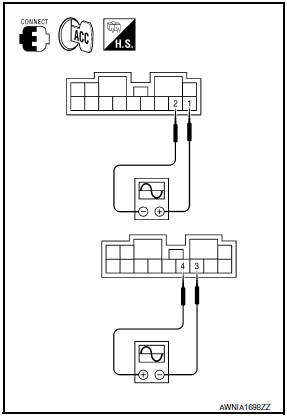

  1. Connect BOSE speaker amp. connector B110 and suspect tweeter connector.
  2. Turn ignition switch to ACC.
  3. Push POWER switch.

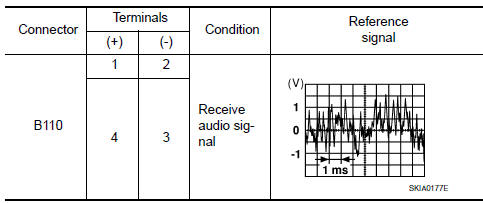

  4. Check the signal between BOSE speaker amp. harness connector B110 terminals with CONSULT or oscilloscope.

Nissan Maxima. TWEETER SIGNAL CHECK

4.HARNESS CHECK

Nissan Maxima. HARNESS CHECK

  1. Disconnect AV control unit connector M157 and BOSE speaker amp. connector B109.

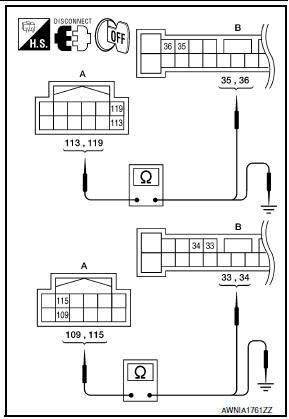

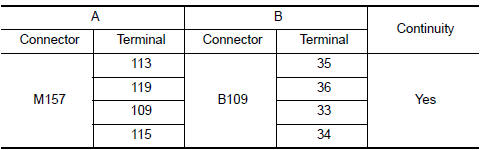

  2. Check continuity between AV control unit harness connector M157 (A) and BOSE speaker amp. harness connector B109 (B).

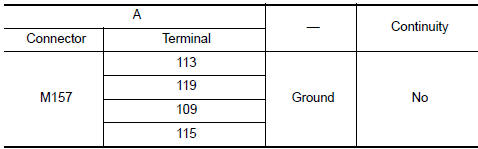

  3. Check continuity between AV control unit harness connector M157 (A) and ground.

Nissan Maxima. HARNESS CHECK

Nissan Maxima. HARNESS CHECK

5.TWEETER SIGNAL CHECK

Nissan Maxima. TWEETER SIGNAL CHECK

  1. Connect AV control unit connector and BOSE speaker amp.

    connector.

  2. Turn ignition switch to ACC.
  3. Push POWER switch.

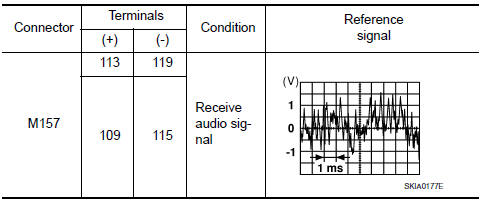

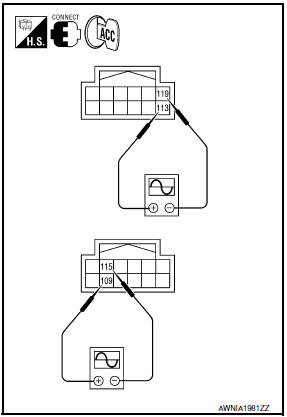

  4. Check the signal between AV control unit harness connector terminals with CONSULT or oscilloscope.

Nissan Maxima. TWEETER SIGNAL CHECK
