Nissan Maxima Service and Repair Manual: Diagnosis system (AV control unit)

Description

  • The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit performs a diagnosis for each unit in the system during the on board diagnosis.
  • Perform a CONSULT diagnosis if the on board diagnosis does not start, e.g., the screen does not display anything, the multifunction switch does not function, etc.

On Board Diagnosis Function

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be checked.

Self-diagnosis Mode

Nissan Maxima. MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

  • Press the "BACK" switch and the "UP" switch of the 8-direction switches within 10 seconds after turning the ignition switch from OFF to ACC and hold them for 3 seconds or more. Then the buzzer sounds, all indicators of the preset switch illuminate, and the self-diagnosis mode starts.
  • The continuity of each switch at the ON position can be checked by pressing the switch. The buzzer sounds if the switch is normal.

NOTE: The disk eject switch cannot be checked

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

ON BOARD DIAGNOSIS

Description

  • The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and a confirmation/adjustment mode for operating manually.
  • The self-diagnosis mode performs diagnoses on the AV control unit, connections between system components as well as connections between AV control unit and GPS antenna. Then it displays the diagnosis results on the display.
  • The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and set values, as well as to monitor the system error records and system communication status. The checking, modifying or adjusting generally require human intervention and judgment (the system cannot make judgment automatically).

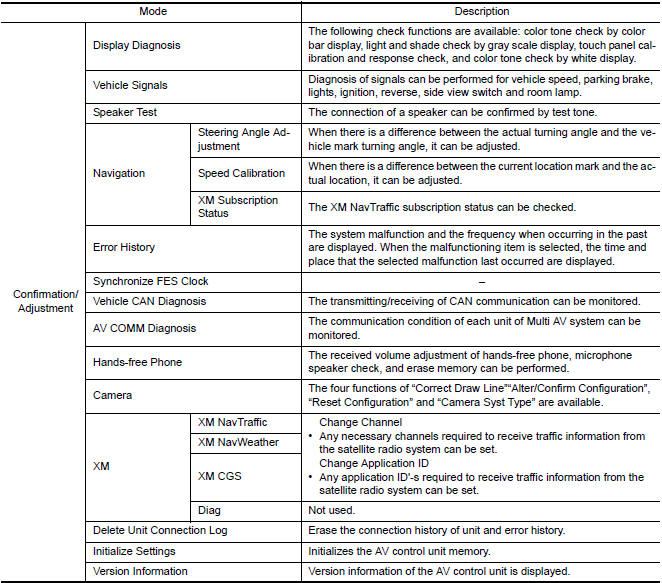

On Board Diagnosis Item

Mode

Description

Self Diagnosis
  • AV control unit diagnosis.
  • Diagnoses the connections across system components, between AV control unit and GPS antenna.

Nissan Maxima. On Board Diagnosis Item

STARTING PROCEDURE

Nissan Maxima. STARTING PROCEDURE

  1. Start the engine.
  2. Turn the audio system OFF.
  3. While pressing the "SETTING" button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.)
  • Shifting from current screen to previous screen is performed by pressing "BACK" button.
  1. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected

Nissan Maxima. STARTING PROCEDURE

SELF-DIAGNOSIS MODE

  1. Start the self-diagnosis function and select "Self Diagnosis".
  • Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.
  • The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trouble diagnosis.

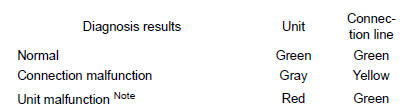

  1. Diagnosis results are displayed after the self-diagnosis is completed.

    The unit names and the connection lines are color-coded according to the diagnostic results.

Nissan Maxima. SELF-DIAGNOSIS MODE

NOTE: Control unit (AV control unit) and amplifier (BOSE amp.) are displayed in red.

  • Replace AV control unit if "Self-Diagnosis did not run because of a control unit malfunction" is indicated. The symptom is AV control unit internal error.
  • If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order of priority: red > gray.

Nissan Maxima. SELF-DIAGNOSIS MODE

The comments of the self-diagnosis results can be viewed with a component in the diagnosis result screen.

Detection Range of Self-diagnosis Mode

  • The self-diagnosis mode allows the technician to diagnose the connection in the communication line between AV control unit and each unit and the internal operation of the AV control unit.
  • Because the start condition of diagnosis function is a switch operation, the on board diagnosis function cannot be started up if any malfunction is detected in the communication circuit between AV control unit and multifunction switch.

SELF-DIAGNOSIS RESULTS

Check the applicable display at the following table, and then repair the malfunctioning parts.

Only Unit Part Is Displayed In Red.

Screen switch

Description

Possible malfunction location / Action to take

Control unit Malfunction is detected in AV control unit power supply and ground circuits. Check AV control unit power supply and ground circuits. When detecting no malfunction in those components, replace AV control unit.

A Connecting Cable Between Units Is Displayed In Yellow

Area with yellow connection lines

Description

Possible malfunction location / Action to take

Control unit ⇔ Front Display Malfunction is detected in serial communication circuits between AV control unit and front display unit. Serial communication circuits between AV control unit and front display unit.
Control unit ⇔ GPS Antenna GPS antenna connection malfunctions detected GPS antenna

CONFIRMATION/ADJUSTMENT MODE

Nissan Maxima. CONFIRMATION/ADJUSTMENT MODE

  1. Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
  2. Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "Back" switch to return to the initial Confirmation/Adjustment Mode screen

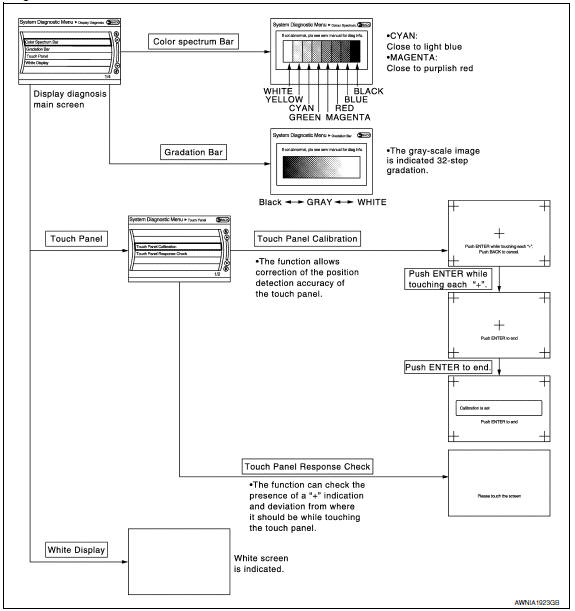

Display Diagnosis

Nissan Maxima. Display Diagnosis

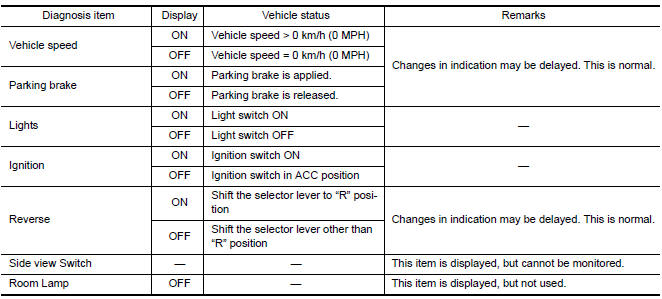

Vehicle Signals

Nissan Maxima. Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Nissan Maxima. Vehicle Signals

Speaker Test

Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "Start" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "Stop" to stop the test tones.

Nissan Maxima. Speaker Test

Navigation

STEERING ANGLE ADJUSTMENT

The steering angle output value detected with the gyroscope is adjusted.

Nissan Maxima. STEERING ANGLE ADJUSTMENT

SPEED CALIBRATION

During normal driving, distance error caused by tire wear and tire pressure change is automatically adjusted for by the automatic distance correction function. This function, on the other hand, is for immediate adjustment, in cases such as driving with tire chain fitted on tires.

Nissan Maxima. SPEED CALIBRATION

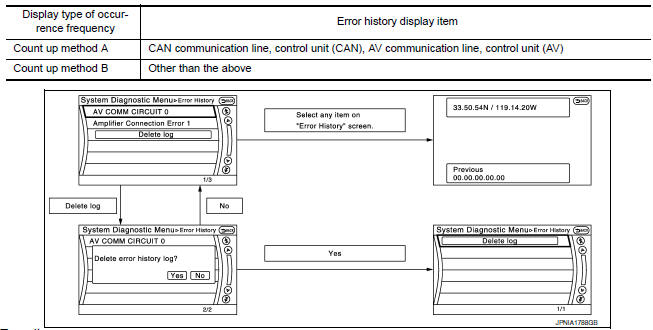

Error History

The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this situation.

The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points.

  • If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and time of occurrence may not be able to be displayed.
  • Place of the error occurrence is represented by the position of the current location mark at the time an error occurred. If current location mark has deviated from the correct position, then the place of the error occurrence cannot be located correctly.
  • The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item.

Count up method A

  • The counter resets to 0 if an error occurs when ignition switch is turned ON. The counter increases by 1 if the condition is normal at a next ignition ON cycle.
  • The counter upper limit is 39. Any counts exceeding 39 are ignored." The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Count up method B

  • The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even if the condition is normal at the next ignition ON cycle.
  • The counter upper limit is 50. Any counts exceeding 50 are ignored. " The counter can be reset (no error record display) with the "Delete log" switch or CONSULT.

Nissan Maxima. Error History

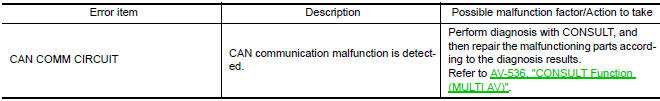

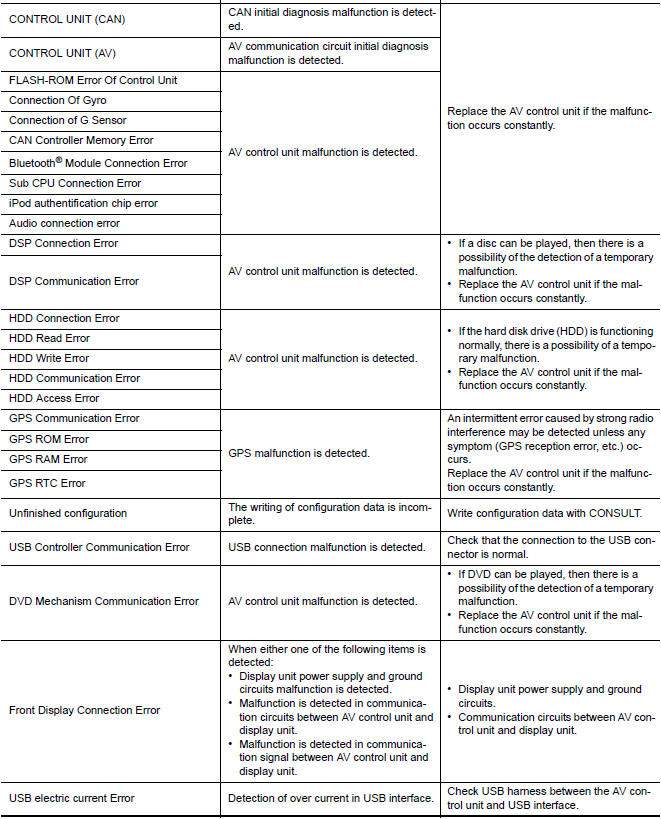

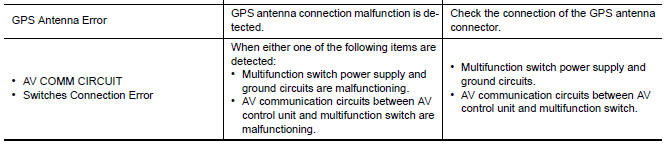

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items

Nissan Maxima. Error item

Nissan Maxima. Error item

Nissan Maxima. Error item

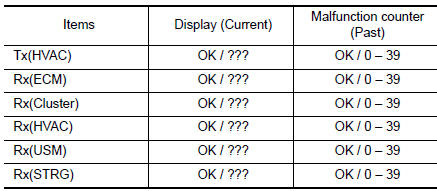

Vehicle CAN Diagnosis

Nissan Maxima. Vehicle CAN Diagnosis

  • CAN communication status and error counter is displayed.
  • The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
  • The error counter is erased if "Reset" is pressed.

Nissan Maxima. Vehicle CAN Diagnosis

NOTE: "???" indicates UNKWN

AV COMM Diagnosis

Nissan Maxima. AV COMM Diagnosis

  • Displays the communication status between AV control unit (master unit) and each unit.
  • The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
  • The error counter is erased if "Reset" is pressed.

Nissan Maxima. AV COMM Diagnosis

NOTE: "???" indicates UNKWN

Hands-Free Phone

Nissan Maxima. Hands-Free Phone

The hands-free phone reception volume adjustment and microphone and speaker test functions are also available.

Camera

The four functions of "Correct Draw Line of Rear View Camera", "Alter/Confirm Configuration", "Reset Configuration" and "Camera Syst Type" are available.

Nissan Maxima. Camera

Correct Draw Line of Rear View Camera

 Use this mode to adjust the guide line display position of the rearview monitor if necessary after removing the rear view monitor camera.

Nissan Maxima. Correct Draw Line of Rear View Camera

Alter/Confirm Configuration

 Configuration stored in the AV control unit can be checked and modified.

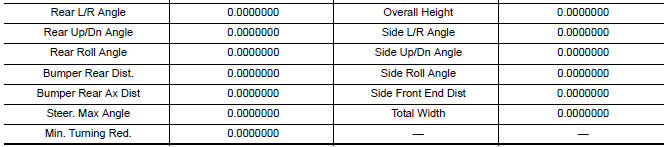

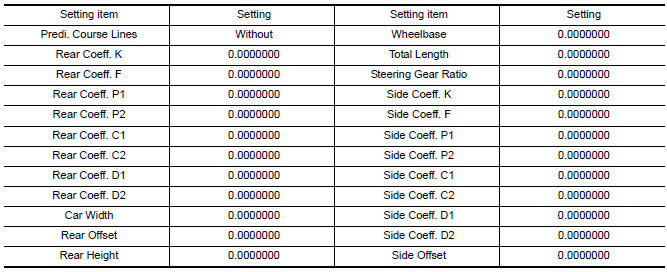

Configuration list

Nissan Maxima. Configuration list

Nissan Maxima. Configuration list

Reset Configuration

Configuration stored in the AV control unit can be initialized.

Nissan Maxima. Reset Configuration

Camera Syst Type

Type of camera system is selectable.

Nissan Maxima. Camera Syst Type

XM

  • Change Channel
    - Any necessary channels required to receive traffic information from the satellite radio system can be set.
  • Change Application ID
    - Any application ID'-s required to receive traffic information from the satellite radio system can be set.

Nissan Maxima. XM

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed.)

Nissan Maxima. Delete Unit Connection Log

Initialize Settings

"Erase All Customer Data" and "Reset Factory Configuration" are possible.

CAUTION:

  • Never perform Reset Factory Configuration except when configuration is unsuccessful.
  • Factory Configuration Initialize requires configuration. For details, refer to AV-525, "Description".

Nissan Maxima. Initialize Settings

Version Information

Version information of the AV control unit is displayed.

Nissan Maxima. Version Information

CONSULT Function (MULTI AV)

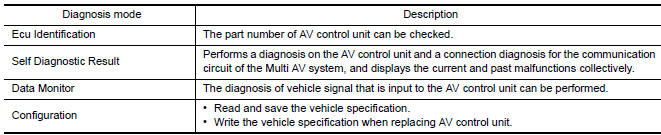

APPLICATION ITEMS

CONSULT performs the following functions via the communication with the AV control unit.

Nissan Maxima. APPLICATION ITEMS

AV Communication

When "AV communication" of "CAN Diag Support Monitor" is selected, the following function will be performed.

Nissan Maxima. AV Communication

ECU IDENTIFICATION

The part number of AV control unit is displayed.

SELF DIAGNOSIS RESULT

  • In CONSULT self-diagnosis, self-diagnosis results and error history are displayed collectively.
  • The current malfunction indicates "CRNT". The past malfunction indicates "PAST".
  • The timing is displayed as "0" if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

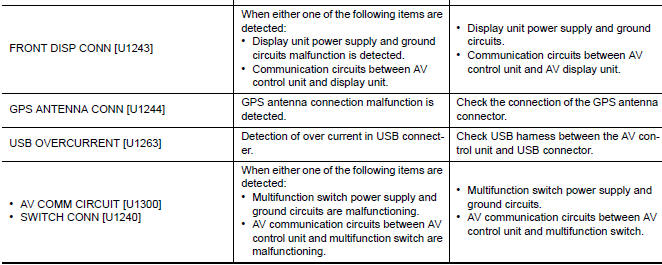

Self-diagnosis Results Display Item

Nissan Maxima. Self-diagnosis Results Display Item

Nissan Maxima. Self-diagnosis Results Display Item

DATA MONITOR

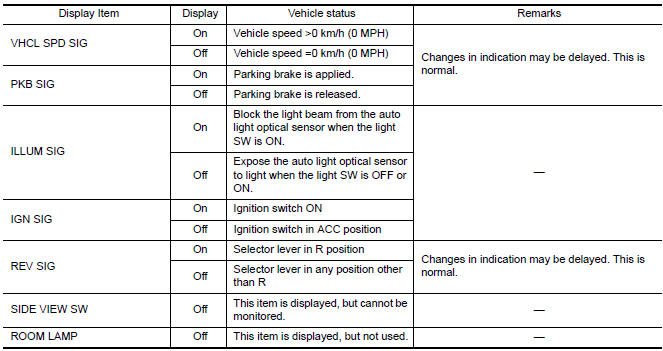

ALL SIGNALS

  • Displays the status of the following vehicle signals inputted into the AV control unit.
  • For each signal, actual signal can be compared with the condition recognized on the system.

Nissan Maxima. ALL SIGNALS

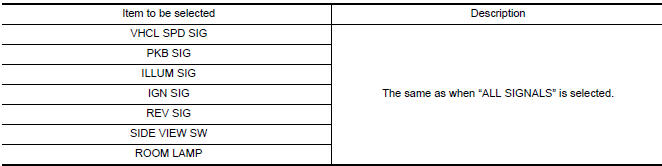

SELECTION FROM MENU

Allows the technician to select which vehicle signals should be displayed and displays the status of the selected vehicle signals.

Nissan Maxima. SELECTION FROM MENU

WORK SUPPORT

Nissan Maxima. WORK SUPPORT

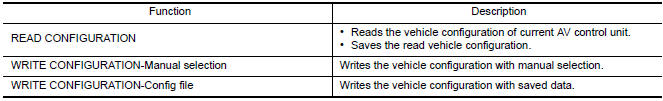

CONFIGURATION

Configuration has three functions as follows

Nissan Maxima. CONFIGURATION

    Hands-free phone system
    System Diagram System Description Refer to the Owner's Manual for Bluetooth telephone system operating instructions. NOTE: Cellular telephones must have their wireless connection set up ...

    DTC/circuit diagnosis
    ...
