The transmission enters the manual shift mode by moving the shift lever to the left side in the "D" range. You can select the manual shift range either by moving the shift lever up or down, or by pulling the right-side or left-side paddle shifter (if so equipped). To cancel the manual shift mode, return shift lever to the right D (Drive) position.
The transmission returns to automatic driving mode.

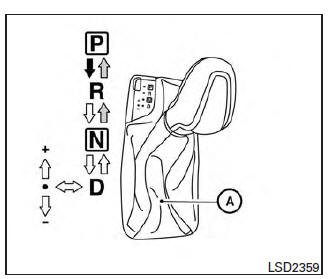

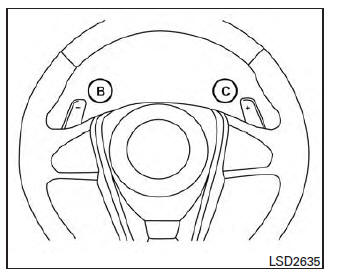

When the shift lever is shifted from D (Drive) to the manual shift gate A with the vehicle is stopped or while driving, the transmission enters the manual shift mode. Shift ranges can be selected manually. Shift ranges can also be selected using the paddle shifters (if so equipped) on the steering wheel B and C . When you pull the paddle shifter while in the D (Drive) position, the transmission will shift to the upper or lower range temporarily. If the paddle shifters are not used for about 5-10 seconds, the transmission will automatically return to the D (Drive) position.
If you want to return to the D (Drive) position manually, pull and hold either paddle shifter for about 1.5 seconds.
In the manual shift mode, the shift range is displayed on the position indicator in the meter.
When shifting the shift lever to the manual shift gate, the position indicator displays 1 (first) up to 7 (seventh) depending on vehicle speed.
Shift ranges up or down one by one as follows: 1⇔ 2 ⇔ 3 ⇔ 4 ⇔ 5 ⇔ 6 ⇔ 7
M7 (7th)
Use this position for all normal forward driving at highway speeds.
M6 (6th) and M5 (5th)
Use this position when driving up long slopes, or for engine braking when driving down long slopes.
M4 (4th), M3 (3rd) and M2 (2nd)
Use for hill climbing or engine braking on downhill grades.
M1 (1st)
Use this position when climbing steep hills slowly or driving slowly through deep snow, sand or mud, or for maximum engine braking on steep downhill grades.
When shifting up
Move the shift lever to the + (up) side. (Shifts to higher range.)
When shifting down
Move the shift lever to the (down) side. (Shifts to lower range.)
When canceling the manual shift mode
Return the shift lever to the D (Drive) position to return the transmission to the normal driving mode.
This helps maintain driving performance and reduces the chance of vehicle damage or loss of control.
CVT operation is limited to automatic drive mode when CVT fluid temperature is extremely low even if manual shift mode is selected. This is not a malfunction. When CVT fluid warms up, manual mode can be selected.
When the CVT fluid temperature is high, the shift range may upshift in lower rpm than usual. This is not a malfunction.
