Nissan Maxima Service and Repair Manual: Wiring diagram

COLOR DISPLAY

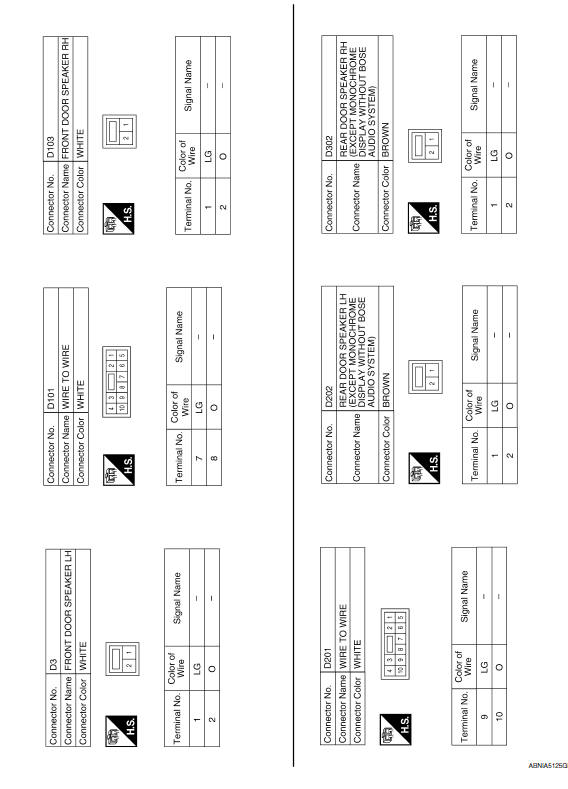

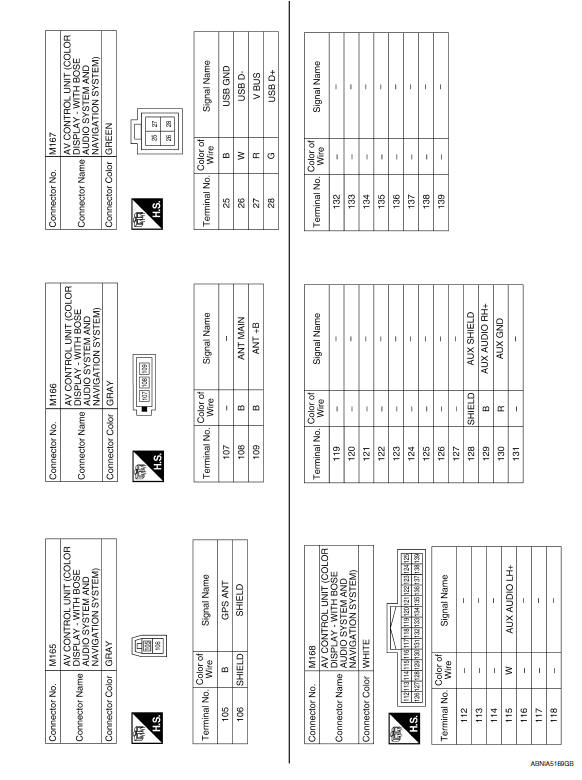

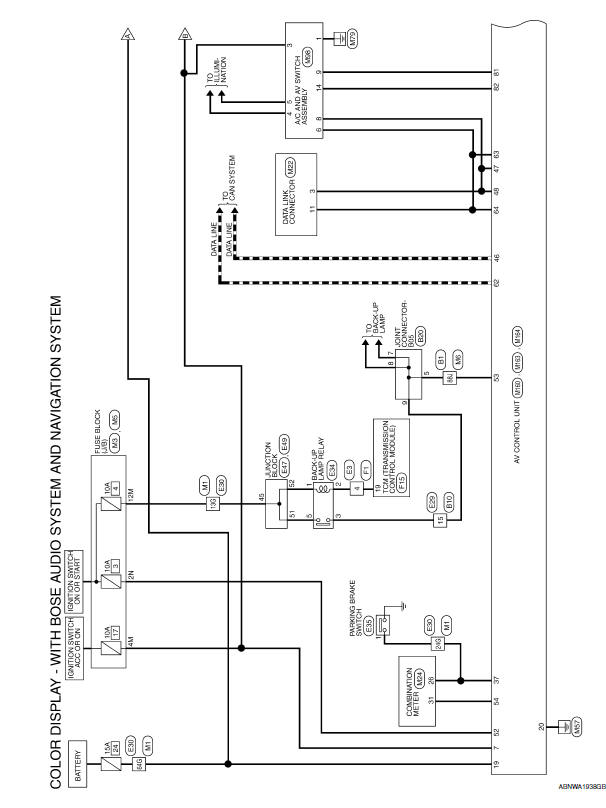

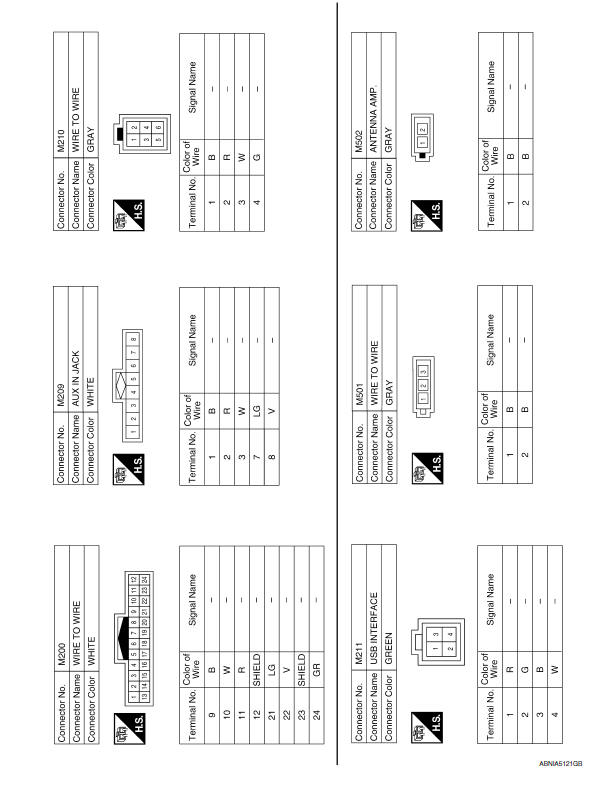

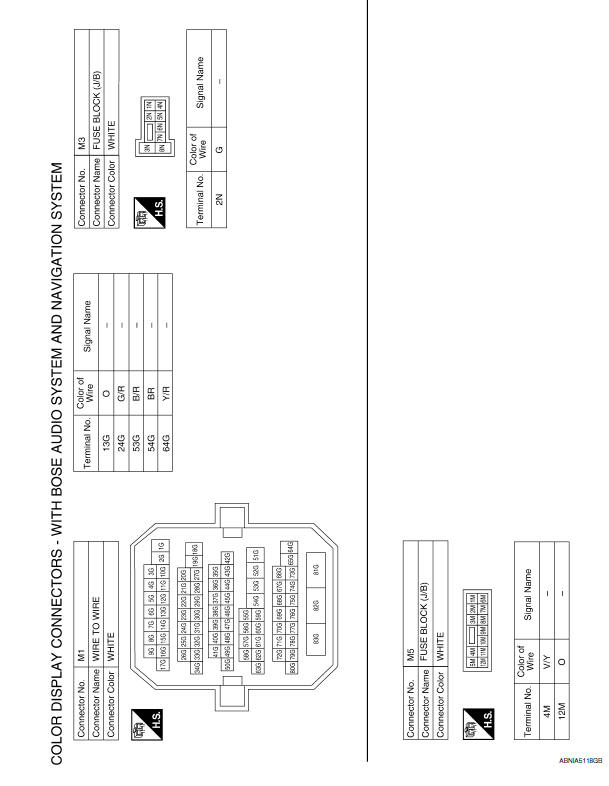

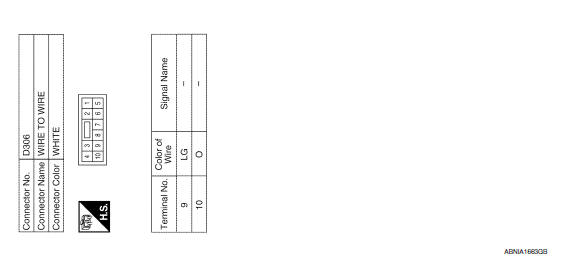

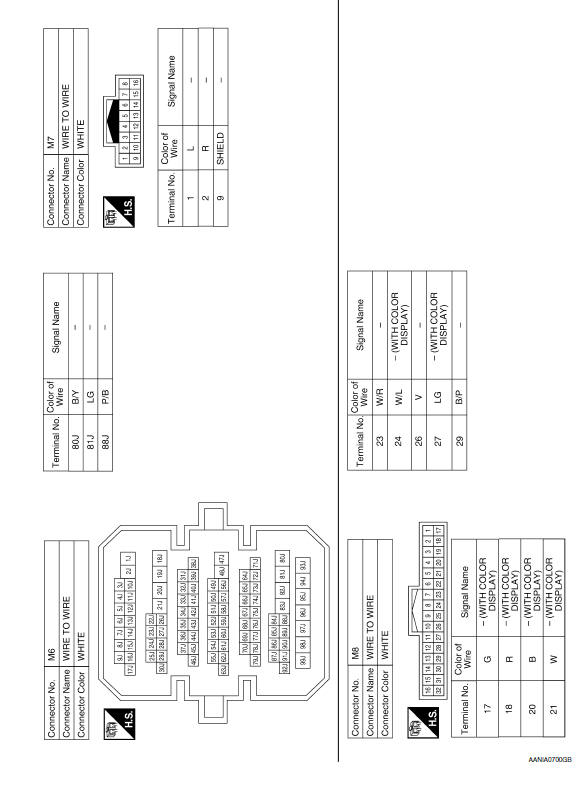

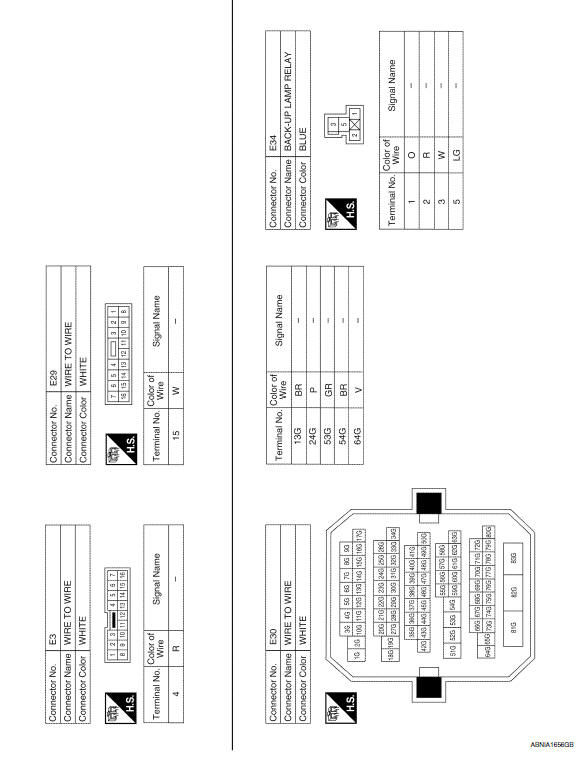

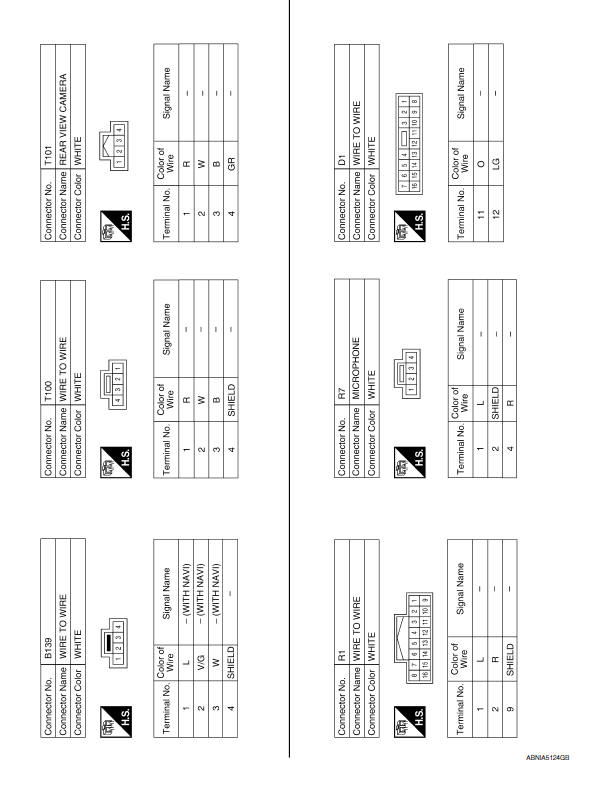

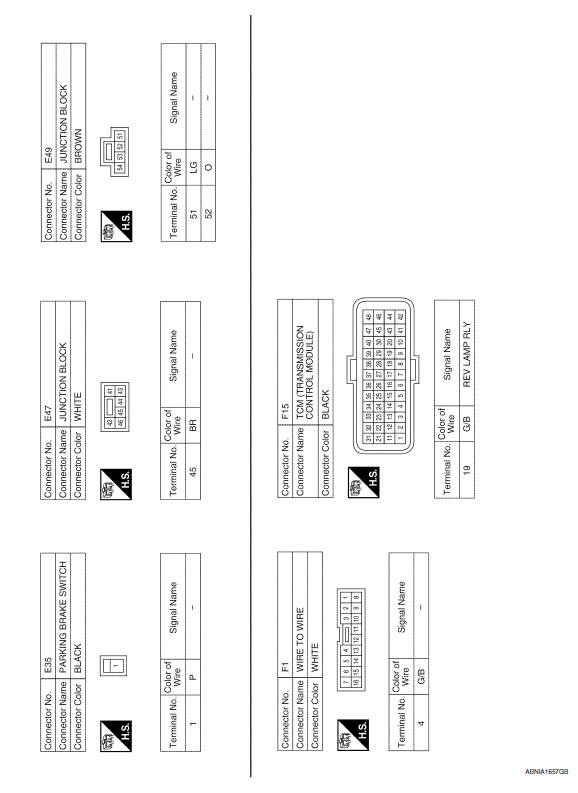

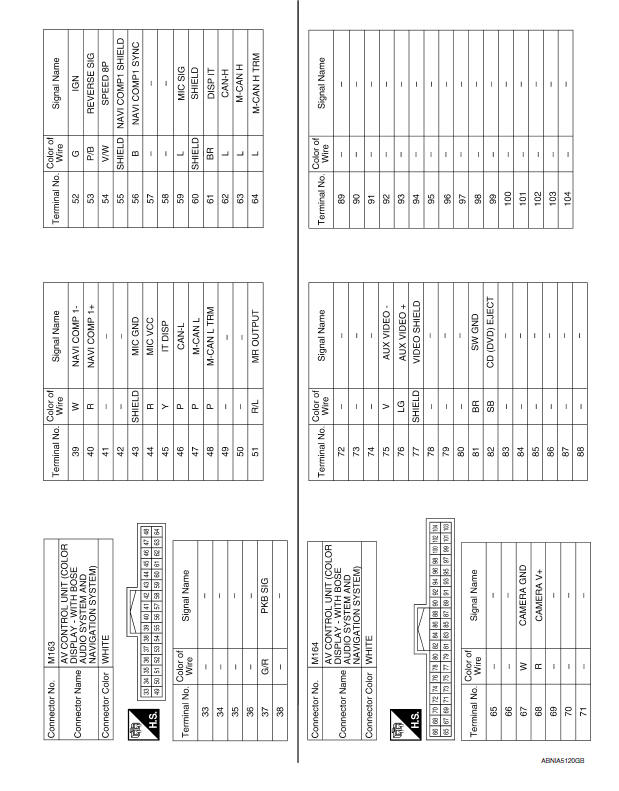

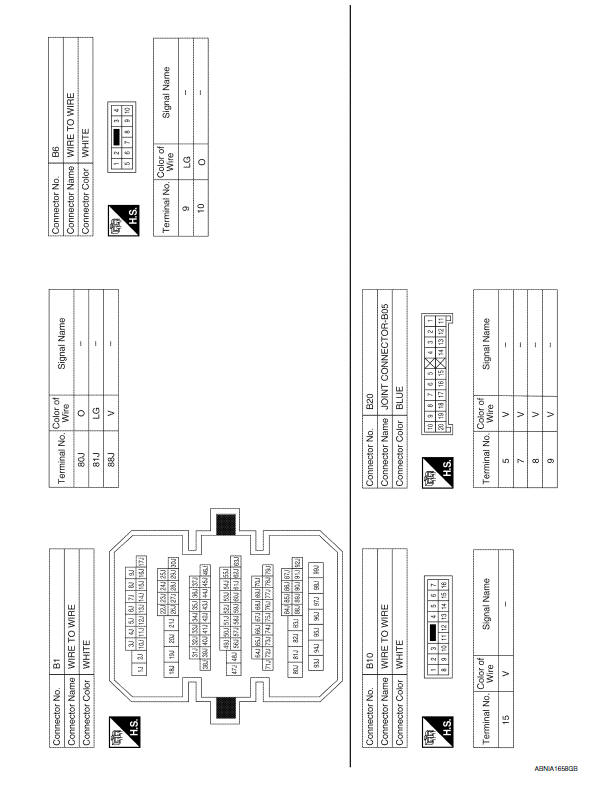

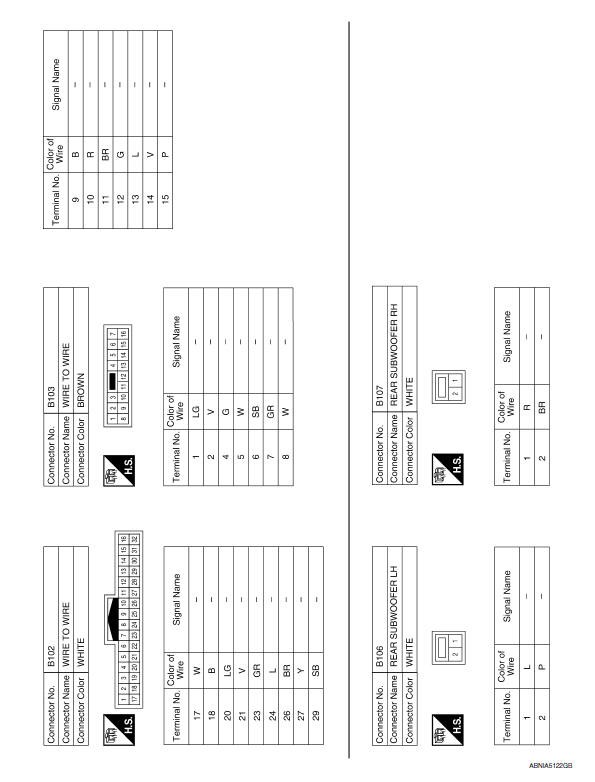

Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

Nissan Maxima. Wiring Diagram - With BOSE audio system With Navigation System

    Display unit
    Reference Value TERMINAL LAYOUT PHYSICAL VALUES BOSE SPEAKER AMP Reference Value TERMINAL LAYOUT PHYSICAL VALUES ...
