Description

The VIAS control solenoid valve 1 cuts the intake manifold vacuum signal for power valve 1 control. It responds to ON/OFF signals from the ECM. When the solenoid is OFF, the vacuum signal from the intake manifold is cut. When the ECM sends an ON signal the coil pulls the plunger downward and sends the vacuum signal to the power valve actuator 1.

DTC Logic

DTC DETECTION LOGIC

Nissan Maxima. DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.CONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conducting the next test.

  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON.
  3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION: Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

2.PERFORM DTC CONFIRMATION PROCEDURE

  1. Start engine and let it idle for at least 5 seconds.
  2. Check 1st trip DTC.

Diagnosis Procedure

1.CHECK VIAS CONTROL SOLENOID VALVE 1 POWER SUPPLY CIRCUIT

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1 POWER SUPPLY CIRCUIT

  1. Turn ignition switch OFF.
  2. Disconnect VIAS control solenoid valve 1 harness connector.
  3. Turn ignition switch ON.
  4. Check the voltage between VIAS control solenoid valve 1 harness connector and ground.

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1 POWER SUPPLY CIRCUIT

2.CHECK VIAS CONTROL SOLENOID VALVE 1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

  1. Turn ignition switch OFF.
  2. Disconnect ECM harness connector.
  3. Check the continuity between VIAS control solenoid valve 1 harness connector and ECM harness connector.
  4. Also check harness for short to ground and short to power.

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

3.CHECK VIAS CONTROL SOLENOID VALVE 1

4.CHECK INTERMITTENT INCIDENT

Component Inspection

1.CHECK VIAS CONTROL SOLENOID VALVE 1

With CONSULT

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1

  1. Turn ignition switch OFF.
  2. Reconnect all harness connectors disconnected.
  3. Disconnect vacuum hoses connected to VIAS control solenoid valve 1.
  4. Turn ignition switch ON.
  5. Select "VIAS S/V-1" in "ACTIVE TEST" mode with CONSULT.
  6. Check air passage continuity and operation delay time under the following conditions.

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1

Without CONSULT

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1

  1. Turn ignition switch OFF.
  2. Disconnect VIAS control solenoid valve 1 harness connector.
  3. Disconnect vacuum hoses connected to VIAS volume control solenoid valve 1.

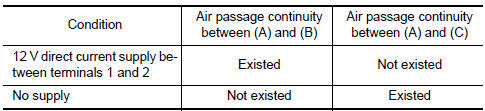

  4. Check air passage continuity and operation delay time under the following conditions.

Nissan Maxima. CHECK VIAS CONTROL SOLENOID VALVE 1
