SERVICE DATA AND SPECIFICATIONS (SDS)

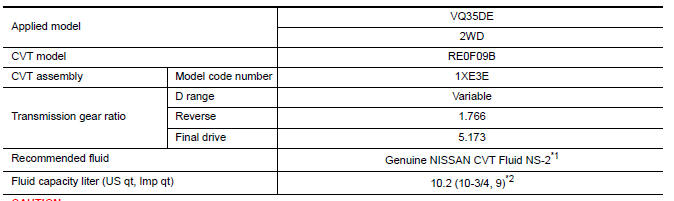

General Specification

CAUTION:
Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may damage the CVT, which is not covered by the NISSAN new vehicle limited warranty.
*1: Refer to MA-15, "FOR USA AND CANADA : Fluids and Lubricants" (For United States and Canada), MA-16, "FOR MEXICO : Fluids and Lubricants" (For Mexico).
*2: The fluid capacity is the reference value. Check the fluid level with CVT fluid level gauge.

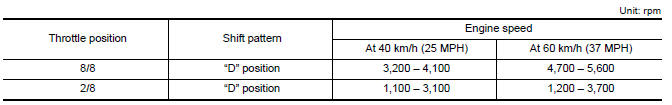

Vehicle Speed When Shifting Gears
Numerical value data are reference values.

CAUTION: Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).
Stall Speed

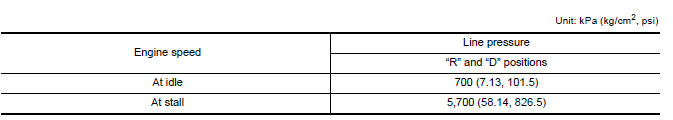

Line Pressure

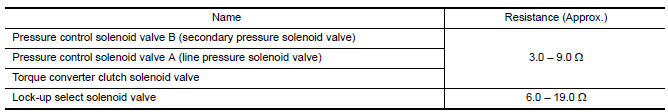

Solenoid Valves

CVT Fluid Temperature Sensor

Primary Speed Sensor

Secondary Speed Sensor

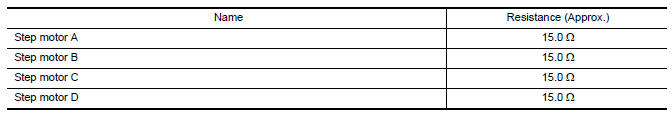

Step Motor

Torque Converter

Unit disassembly and assembly
Front axleECM branch line circuit
Diagnosis Procedure
1.CHECK CONNECTOR
Turn the ignition switch OFF.
Disconnect the battery cable from the negative terminal.
Check the following terminals and connectors for damage, bend and
loose connection (unit side and connector
side).
- Models without automatic drive positione ...
P1722 vehicle speed
Description
The vehicle speed signal is transmitted from ABS actuator
and electric unit (control unit) to TCM via CAN communication
line.
DTC Logic
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
Immediately after performing any "DT ...
