Nissan Maxima Service and Repair Manual: Diagnosis and repair workflow
Repair Work Flow

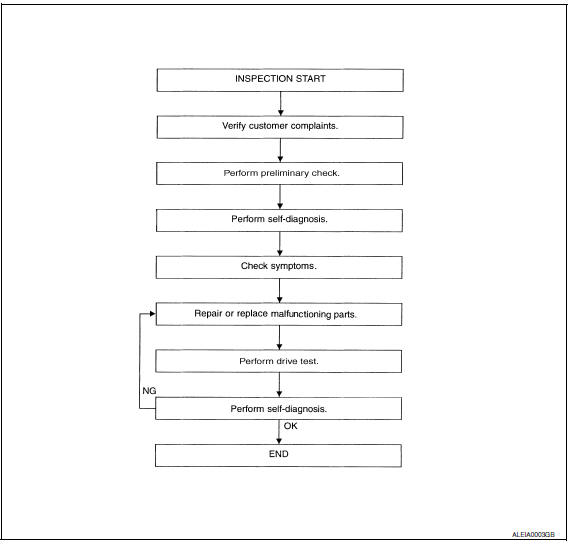

WORK FLOW
DETAILED FLOW
1.CUSTOMER INFORMATION
Interview the customer to obtain detailed information about the symptom.
2.PRELIMINARY CHECK
Perform preliminary check
3.SELF-DIAGNOSIS
Perform SELF-DIAGNOSIS.
4.SYMPTOM
Check for symptoms.
5.MALFUNCTIONING PARTS
Repair or replace the applicable parts.
6.DRIVE TEST
- Perform a drive test.
- Check the low tire pressure warning lamp.
7.SELF-DIAGNOSIS
Perform SELF-DIAGNOSIS
Basic inspection
...
Inspection and adjustment
Preliminary Check
NOTE: The Signal Tech II Tool (J-50190) can be used
to perform the following functions. Refer to the Signal Tech II User Guide
for additional information.
Activate and ...
