Nissan Maxima Service and Repair Manual: Passenger seat belt warning system

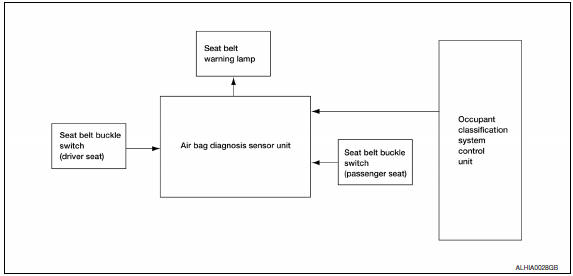

System Diagram

Nissan Maxima. System Diagram

System Description

Nissan Maxima. System Description

The seat belt warning lamp (1) will remind the driver if the driver or
front passenger seat belt should be buckled. The system works in
conjunction with the occupant classification system. Refer to SRC-
10, "Occupant Classification System (OCS)".

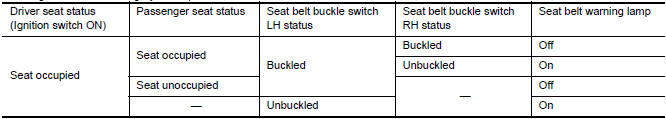

Passenger Seat Belt Warning System Operation
