Nissan Maxima Service and Repair Manual: Bose speaker amp
Reference Value

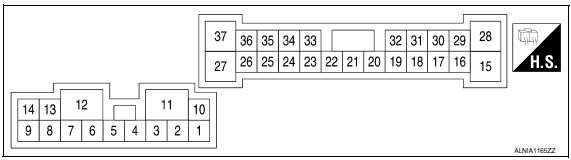

TERMINAL LAYOUT

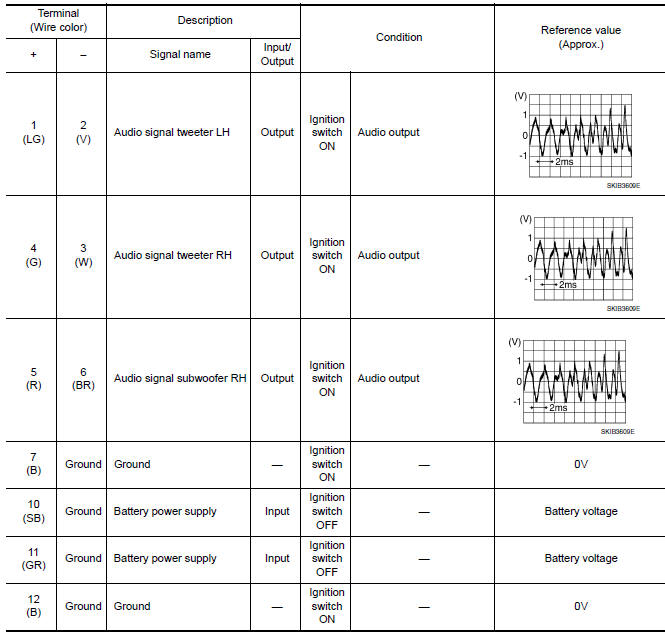

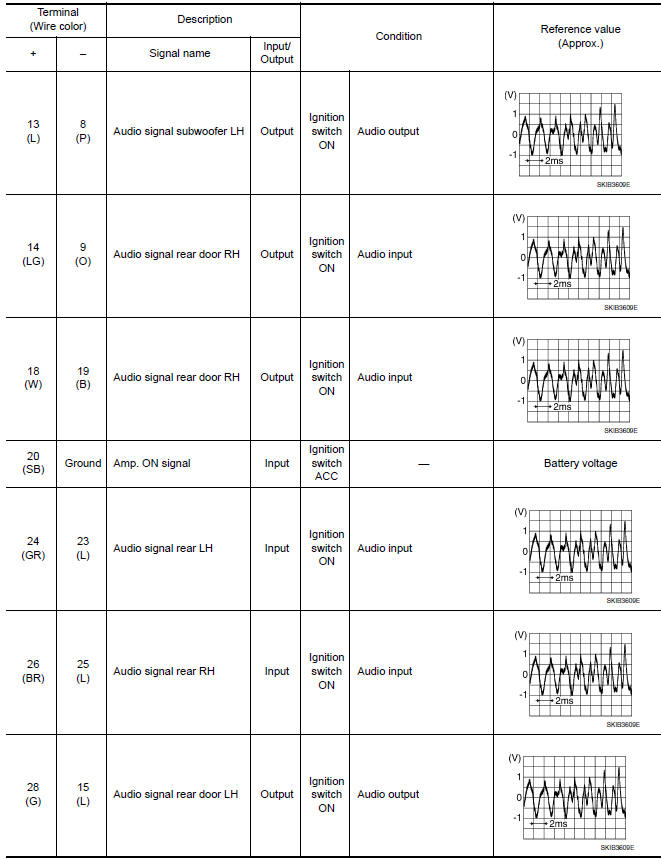

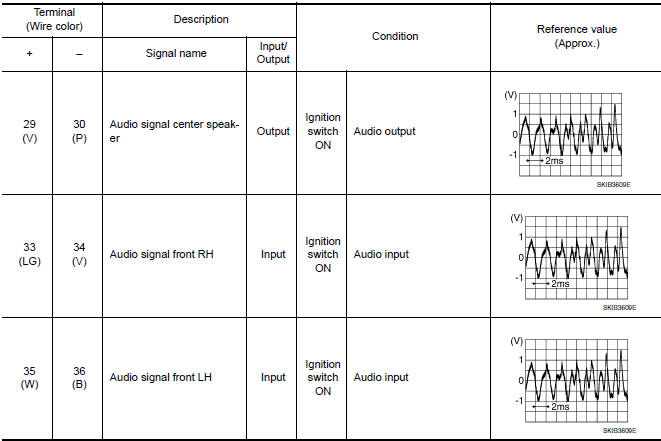

PHYSICAL VALUES
Display unit
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
...
Satellite radio tuner
Reference Value
PHYSICAL VALUES
...
