Nissan Maxima Service and Repair Manual: Satellite radio tuner
Reference Value

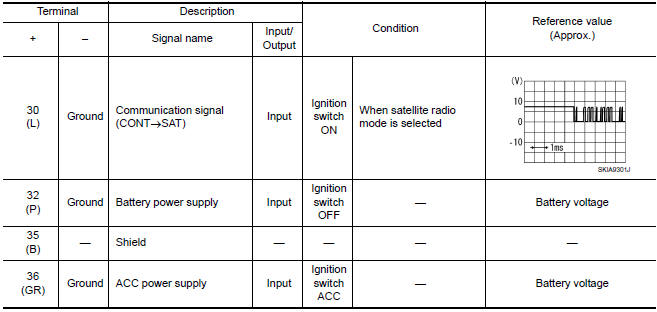

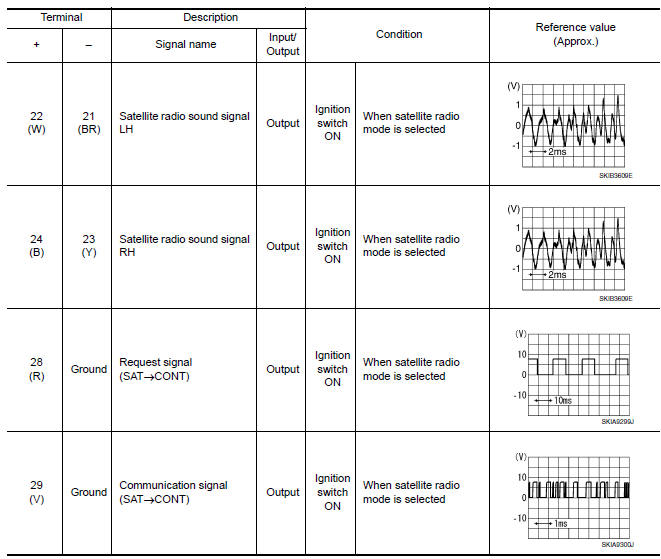

PHYSICAL VALUES
Bose speaker amp
Reference Value

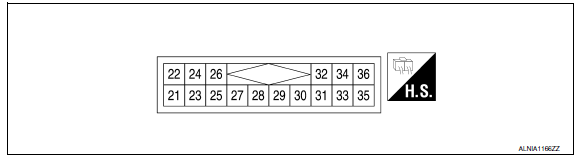

TERMINAL LAYOUT
PHYSICAL VALUES
...
Bluetooth control unit
Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
...
