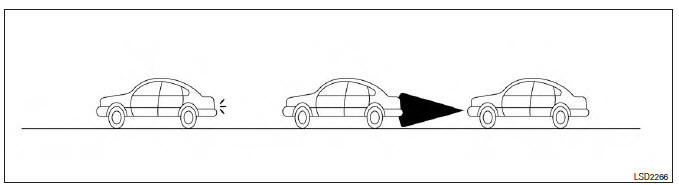

Illustration A

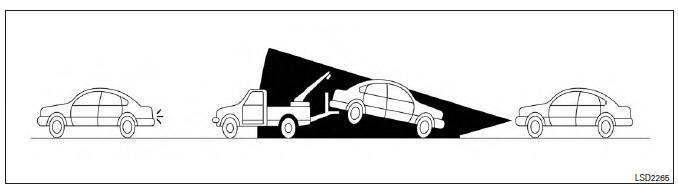

Illustration B
WARNING
Listed below are the system limitations for the PFCW system. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death.
The PFCW system cannot detect all vehicles under all conditions.
The radar sensor does not detect the following objects:

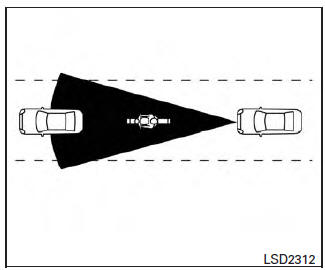

(Illustration A) The PFCW system does not function when a vehicle ahead is a narrow vehicle, such as a motorcycle.
The radar sensor may not detect a vehicle ahead in the following conditions:

Illustration C
Turning the PFCW system on/off
System temporarily unavailableHeadlamp (LO) circuit
Description
The IPDM E/R (intelligent power distribution module engine room) controls the
headlamp low relay based on inputs from the BCM over the CAN communication
lines. When the headlamp low relay is energized, power flows through fuses 51
and 52, located in the IPDM E/R. Power then flows ...
AMP on signal circuit
Description
When the audio system is turned on, a voltage signal is supplied from the
audio unit to the BOSE speaker amp. When this signal is received, the BOSE
speaker amp. will turn on.
Diagnosis Procedure
1.CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)
Turn audio system ON.
Check volta ...
Sound signal circuit
SATELLITE RADIO TUNER
SATELLITE RADIO TUNER : Description
Left and right channel audio signals are supplied from the satellite radio
tuner to the AV control unit through
the sound signal circuits.
SATELLITE RADIO TUNER : Diagnosis Procedure
LEFT CHANNEL
1.CHECK HARNESS
Turn ignition ...
