Nissan Maxima Service and Repair Manual: Differential side oil seal

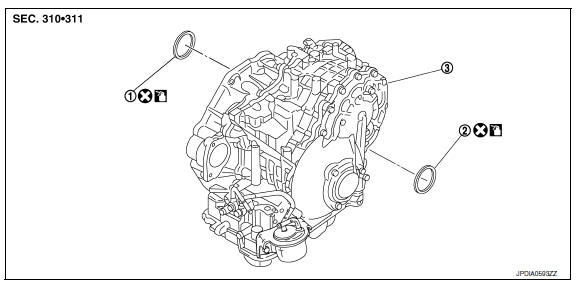

Exploded View
-
RH differential side oil seal
-
LH differential side oil seal
-
Transaxle assembly
Apply CVT Fluid NS-2
Removal and Installation
REMOVAL
-
Remove front fender protector side cover. Refer to EXT-16, "Removal and Installation".
-
Remove front drive shafts. Refer to FAX-9, "Removal and Installation (LH)" (LH) and FAX-10, "Removal and Installation (RH)" (RH).
-
Remove differential side oil seals (1) using a suitable tool (A).
CAUTION: Be careful not to scratch transaxle case and converter housing.
INSTALLATION
Installation is in the reverse order of removal.
-
Install each differential side oil seal evenly using Tool so that differential side oil seal protrudes by the dimension (C) respectively.
(A) : Transaxle case side
(B) : Converter housing side
CAUTION:
-
Do not reuse differential side oil seals.
-
Apply CVT fluid to differential side oil seals.
NOTE:
Differential side oil seal removal direction is used as the reference.
Inspection
Check for CVT fluid leakage and check CVT fluid level. Refer to TM-155, "Inspection".
Secondary speed sensor
Exploded View
Secondary speed sensor
Shim
Transaxle assembly
O-ring
Apply CVT Fluid NS-2
Removal and Installation
REMOVAL
&nb ...
Air breather hose
Exploded View
Air cleaner case
Air breather hose
Transaxle assembly
Heater pipe
Clip
A. Paint mark
: Front
Removal an ...
