Nissan Maxima Service and Repair Manual: C1130, C1131, C1132, C1133, C1136 engine signal
Description
ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication line.
DTC Logic

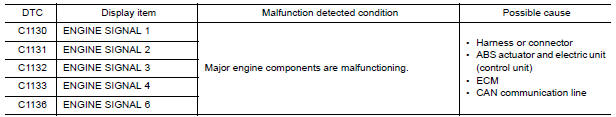

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE

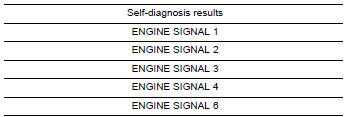

1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Diagnosis Procedure
1.CHECK ENGINE SYSTEM
- Perform ECM self-diagnosis. Repair or replace items indicated,
then perform ECM self-diagnosis again.
Refer to EC-138, "CONSULT Function".
- Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-21, "CONSULT Function (ABS)".
C1121, C1123, C1125, C1127 out ABS sol
Description
The solenoid valve increases, holds or decreases the fluid pressure of each
brake caliper according to the signals
transmitted by the ABS actuator and electric unit (control unit).
D ...
C1142 press sen circuit
Description
The pressure sensor converts the brake fluid pressure to an electric signal
and transmits it to the ABS actuator
and electric unit (control unit). (The pressure sensor is integrated i ...
