Nissan Maxima Service and Repair Manual: Brake warning lamp
Description
NOTE:

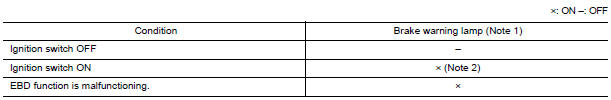

- 1: Brake warning lamp will turn on in case of parking brake operation (when switch is ON) or of brake fluid level switch operation (when brake fluid is insufficient).
- 2: After starting engine, brake warning lamp is turned off.
Component Function Check
1.BRAKE WARNING LAMP OPERATION CHECK 1
Check that the lamp illuminates after the ignition switch is turned ON, and turns OFF after the engine is started.
2.BRAKE WARNING LAMP OPERATION CHECK 2
Check that the brake warning lamp in the combination meter turns on/off correctly when operating the parking brake.
Diagnosis Procedure
1.CHECK PARKING BRAKE SWITCH
Check that the brake warning lamp in the combination meter turns on/off correctly when operating the parking brake.
2.CHECK SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
3.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal.
Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit).
ABS warning lamp
Description
Component Function Check
1.CHECK ABS WARNING LAMP OPERATION
Check that the lamp illuminates for approximately 2 seconds after the
ignition switch is turned ON.
Diagnosis Procedur ...
VDC off indicator lamp
Description
Component Function Check
1.VDC OFF INDICATOR LAMP OPERATION CHECK 1
Check that the lamp illuminates for approximately 2 seconds after the
ignition switch is turned ON.
2.VDC OFF ...
