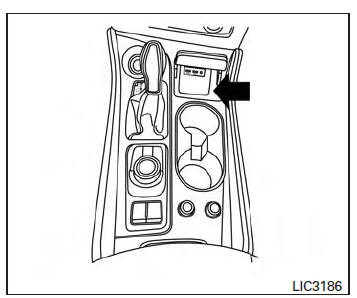

Storage Tray
WARNING
Do not place sharp objects in the trays to help prevent injury in an accident or sudden stop.
Stop lamp
Wiring Diagram
...
RGB (G: green) signal circuit
Description
Transmit the image displayed with AV control unit with RGB signal to the
display unit.
Diagnosis Procedure
1.CHECK CONTINUITY RGB (G: GREEN) SIGNAL CIRCUIT
Turn ignition switch OFF.
Disconnect display unit connector M141 and AV control unit
connector
M154.
Check co ...
P0196 EOT sensor
Description
The engine oil temperature sensor is used to detect the engine oil
temperature. The sensor modifies a voltage signal from the ECM.
The modified signal returns to the ECM as the engine oil temperature
input. The sensor uses a thermistor which is sensitive to the
change in te ...
