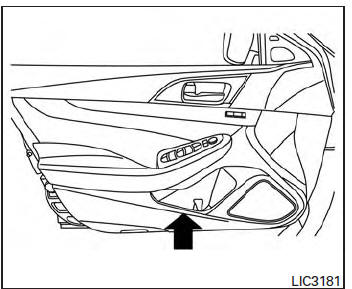

Map pockets
Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW
WITH COLOR DISPLAY
WITH COLOR DISPLAY : How to Perform Trouble Diagnosis For Quick And
Accurate Repair
WORK FLOW
1.LISTEN TO CUSTOMER COMPLAINT
Interview the customer to obtain as much information as possible about the
conditions and environment under which th ...
Driver air bag module
Exploded View
Driver air bag module
Side lid
Driver air bag module harness connectors
Steering wheel switch assembly connector
Driver air bag module bolt
Removal and Installation
CAUTION:
Before servicing, turn ignition switch OFF, disconnect both
battery terminals and wai ...
Vehicle jerks during VDC/TCS/ABS control
Diagnosis Procedure
1.SYMPTOM CHECK
Check if the vehicle jerks during VDC/TCS/ABS control.
2.CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnostic of ABS actuator and electric unit (control unit).
3.CHECK CONNECTOR
Turn ignition switch OFF and disconnect ABS actuator and electric
unit (co ...
