Nissan Maxima Service and Repair Manual: Intelligent key system

Wiring Diagram

Nissan Maxima. Wiring Diagram

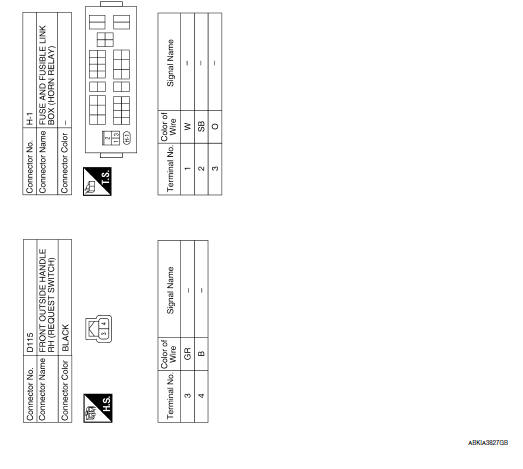

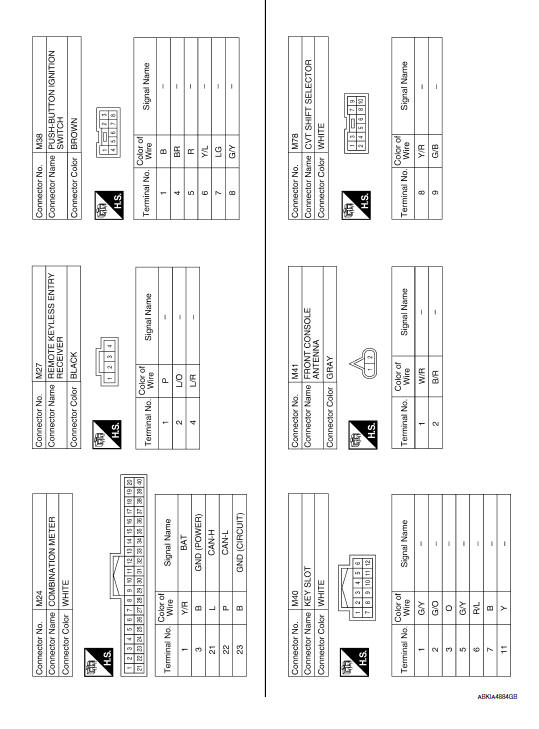

Nissan Maxima. INTELLIGENT KEY SYSTEM

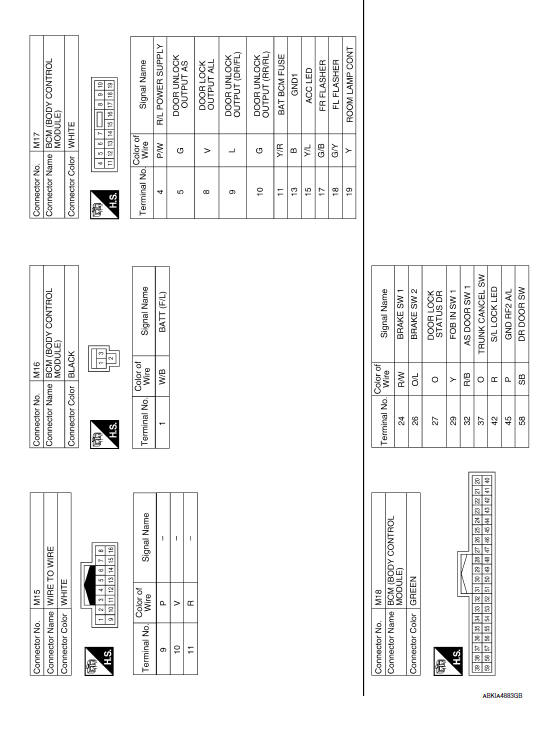

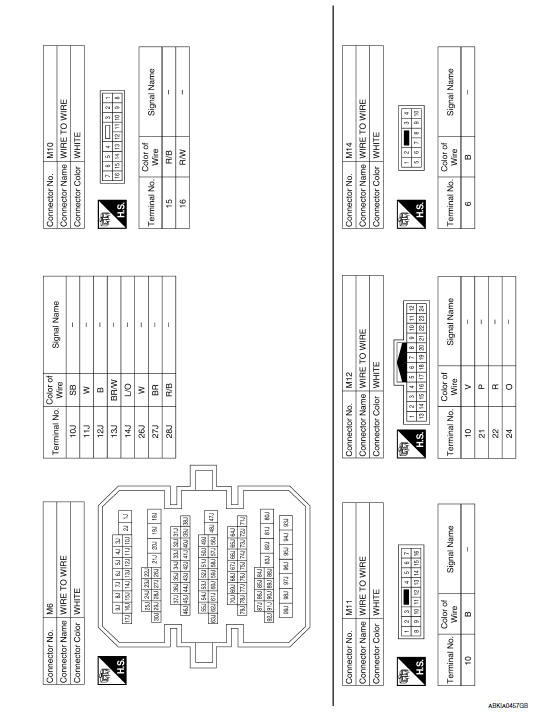

Nissan Maxima. INTELLIGENT KEY SYSTEM

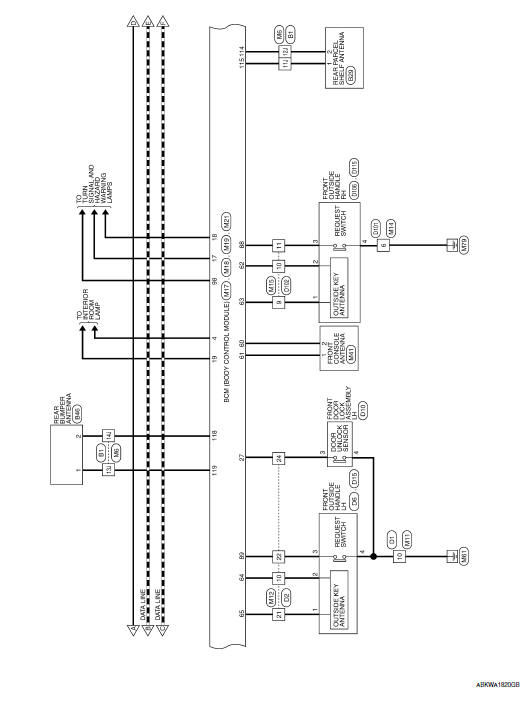

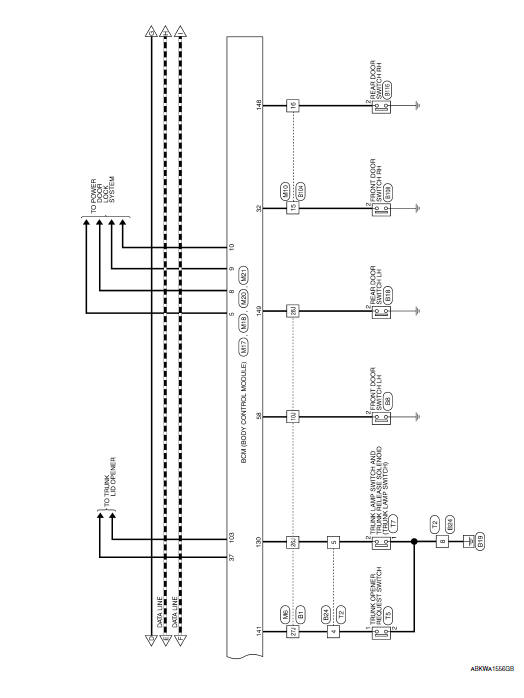

Nissan Maxima. INTELLIGENT KEY SYSTEM

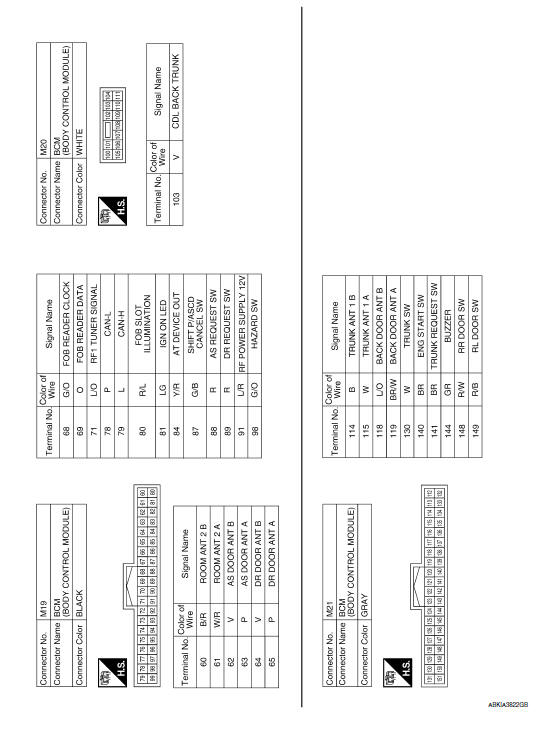

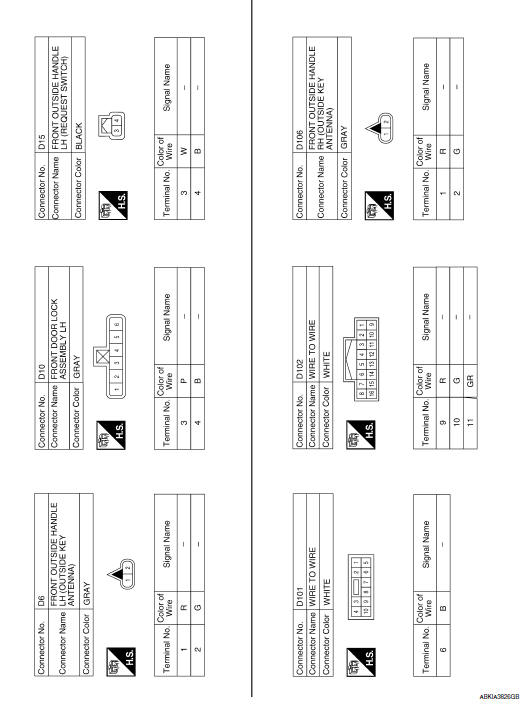

Nissan Maxima. INTELLIGENT KEY SYSTEM

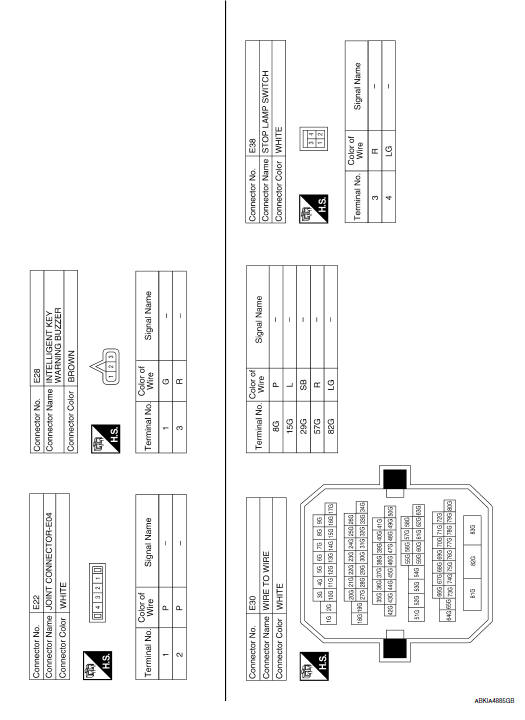

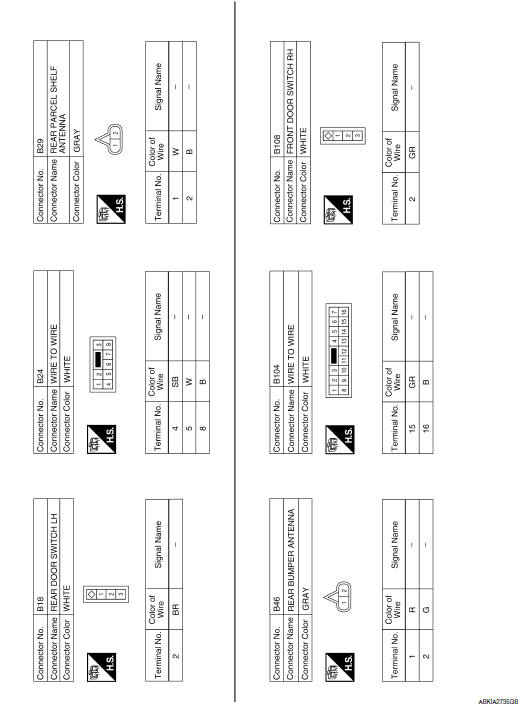

Nissan Maxima. INTELLIGENT KEY SYSTEM

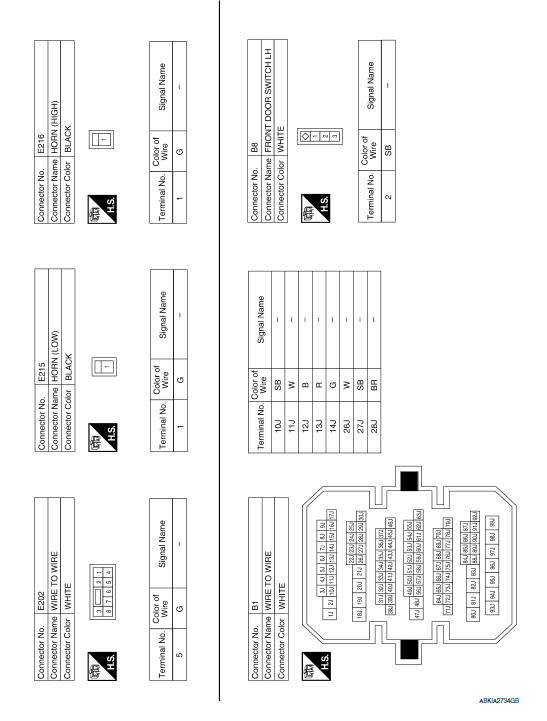

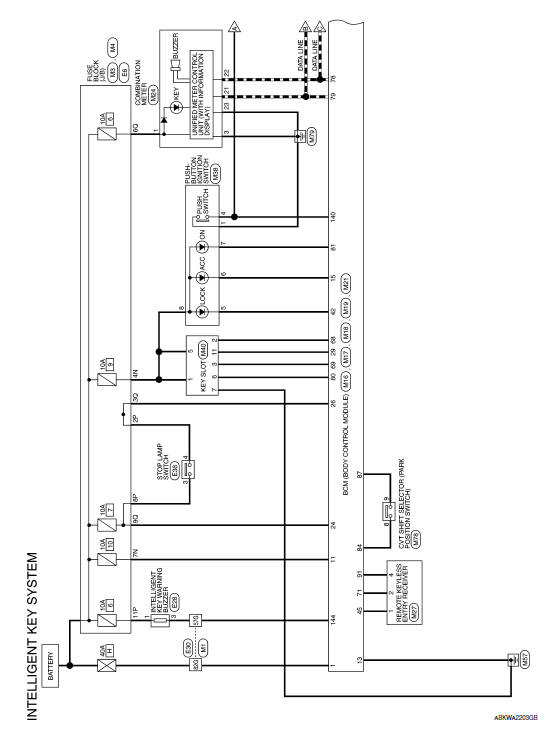

Nissan Maxima. INTELLIGENT KEY SYSTEM

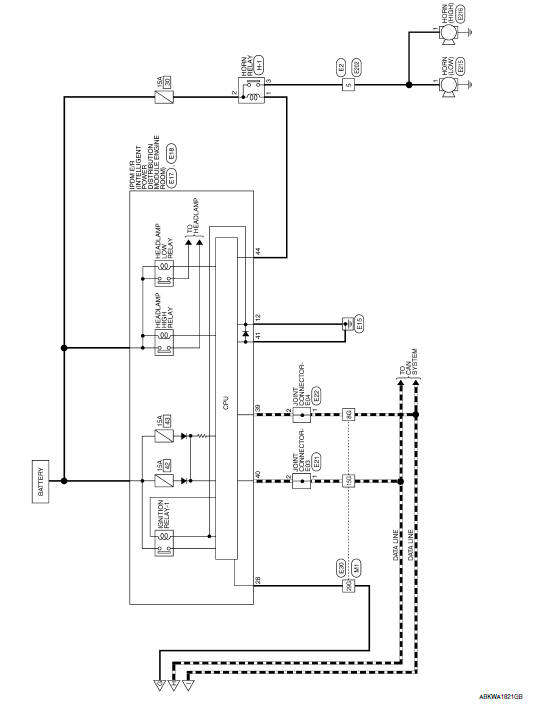

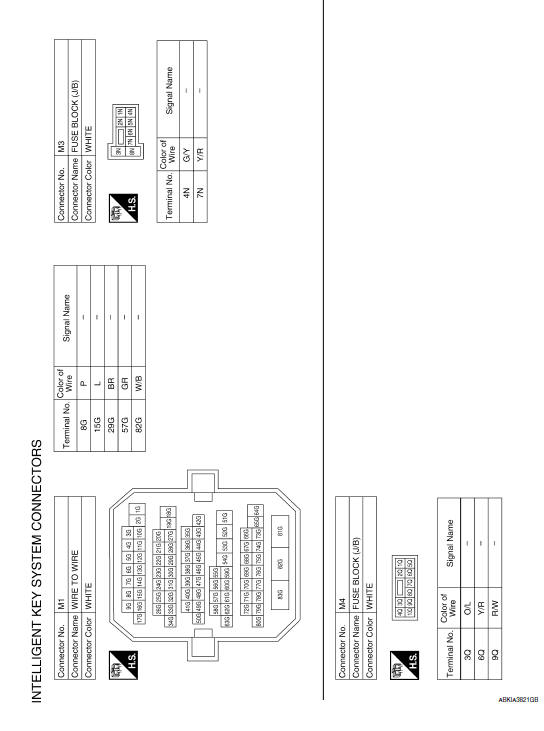

Nissan Maxima. INTELLIGENT KEY SYSTEM

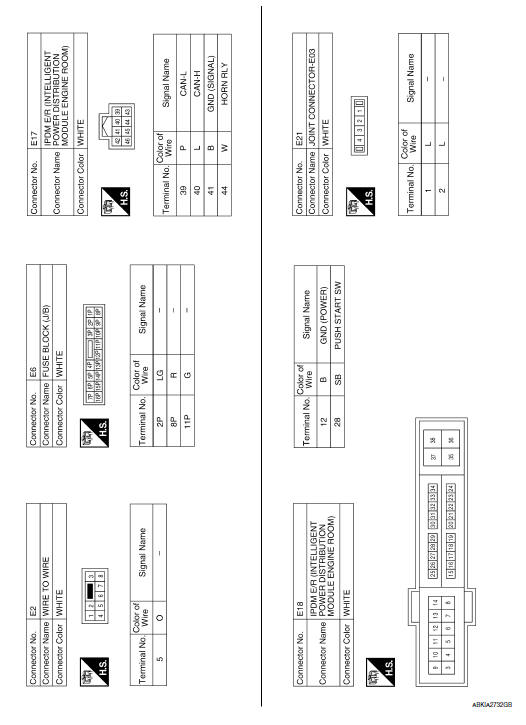

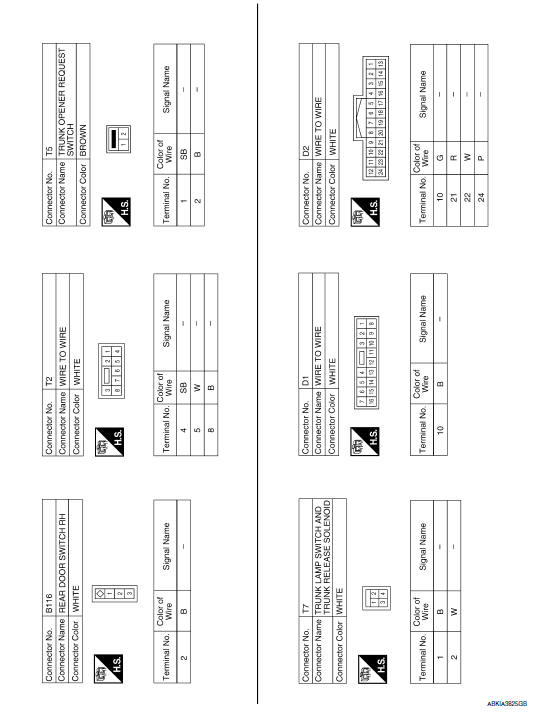

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

Nissan Maxima. INTELLIGENT KEY SYSTEM

    Power door lock system
    Wiring Diagram ...

    Trunk lid opener
    Wiring Diagram ...
