Nissan Maxima Service and Repair Manual: Front grille
Removal and Installation

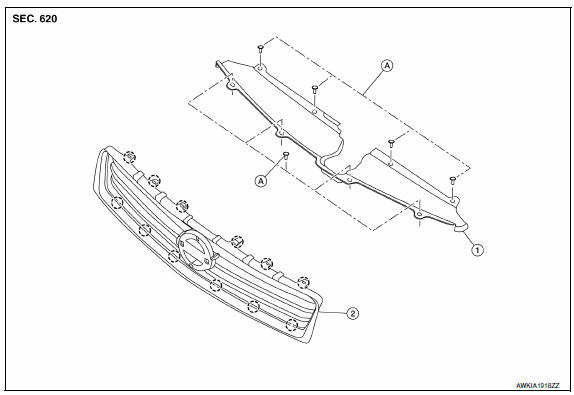

- Core support cover
- Front grille
Pawl
REMOVAL
- Remove the core support cover clips, then remove core support cover.
- Release the front air guide clips, then remove front air guide.
- Release the front grille pawls from behind and push outward, then remove front grille.
INSTALLATION
Installation is in the reverse order of removal.
Rear bumper
Exploded View
Rear bumper supports (RH/LH)
Rear bumper reinforcement
Rear energy absorber
Side bracket (RH/LH)
Rear bumper fascia
Removal and Installation
REMOVAL
Remove trunk ...
Cowl top
Exploded View
Cowl top side trim cover (RH)
Cowl top grille
Lower cowl top extension brace
Lower cowl top extension (RH)
Lower cowl top extension seal (RH)
Lower cowl top extension ...
