WARNING
Failure to follow the warnings and instructions for proper use of the FEB system could result in serious injury or death.
The FEB system can assist the driver when there is a risk of a forward collision with the vehicle ahead in the traveling lane.

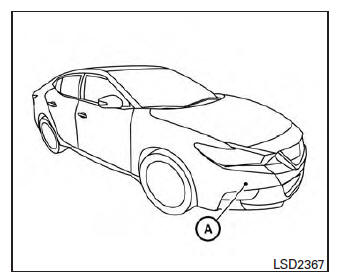

The FEB system uses a radar sensor A located behind the lower grille of the front bumper to measure the distance to the vehicle ahead in the same lane.
IPDM E/R (intelligent power distribution module engine room)
Reference Value
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
Fail Safe
CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible, IPDM E/R performs
fail-safe control. After CAN communication recovers normally, it also returns
to nor ...
Aux image signal circuit
Description
Transmits the image signal of AUX device from auxiliary input jacks to
AV control unit.
AV control unit transmits the image signal that is input to the
display unit.
Diagnosis Procedure
1.CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT
Turn ignition switch OFF.
Disconnect ...
Reclining switch
Description
Reclining switch is equipped to the power seat switch LH on the seat frame.
The operation signal is input to the driver seat control unit when the
reclining switch is operated.
Component Function Check
1.CHECK FUNCTION
Select "RECLN SW-FR", "RECLN SW-RR" in "DATA MONITOR" mode ...
