Nissan Maxima. RearView Monitor (if so equipped)

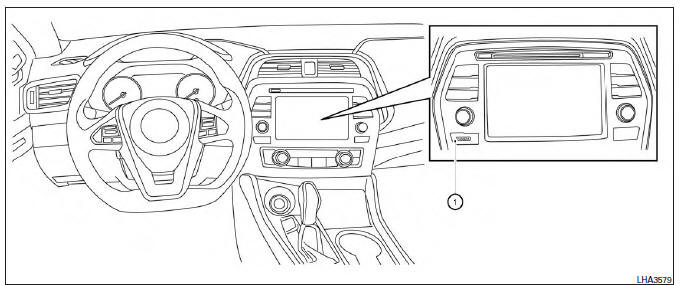

1. CAMERA button

WARNING

  • Failure to follow the warnings and instructions for proper use of the Rear- View Monitor system could result in serious injury or death.
  • RearView Monitor is a convenience feature and is not a substitute for proper backing. Always turn and look out the windows and check mirrors to be sure that it is safe to move before operating the vehicle. Always back up slowly.
  • The system is designed as an aid to the driver in showing large stationary objects directly behind the vehicle, to help avoid damaging the vehicle.
  • The distance guide line and the vehicle width line should be used as a reference only when the vehicle is on a level paved surface. The distance viewed on the monitor is for reference only and may be different than the actual distance between the vehicle and displayed objects.

CAUTION

Do not scratch the camera lens when cleaning dirt or snow from the front of the camera.

The RearView Monitor system automatically shows a rear view of the vehicle when the shift lever is shifted into the R (Reverse) position or when the CAMERA button is pressed. The radio can still be heard while the RearView Monitor is active.

Nissan Maxima. RearView Monitor (if so equipped)

To display the rear view, the RearView Monitor system uses a camera located just above the vehicle's license plate 1 .

RearView Monitor system operation

With the ignition switch in the ON position, move the shift lever to the R (Reverse) position or press the CAMERA button to operate the RearView Monitor.

Monitor, climate, audio, phone and voice recognition systems
...

How to read the displayed lines
Guiding lines which indicate the vehicle width and distances to objects with reference to the vehicle body line A are displayed on the monitor. Distance guide lines Indicate distances from the ...
